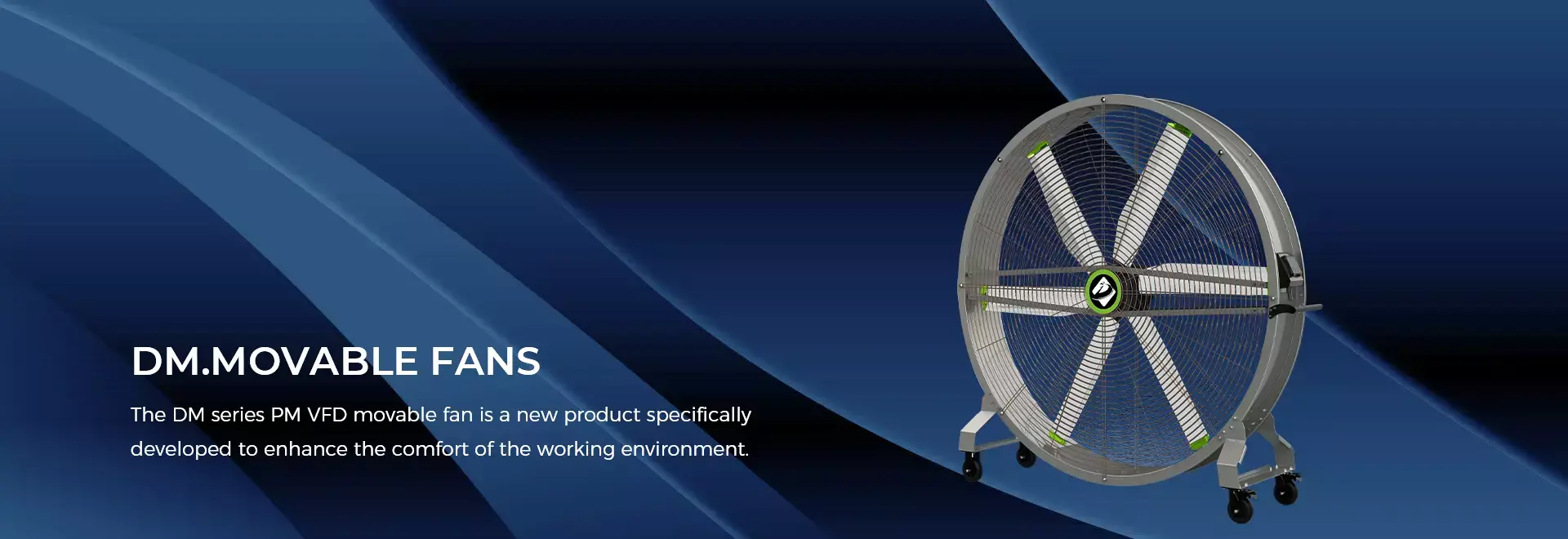

DM.MOVABLE FANS
Variable speed
Energy efficient
Natural wind
Low noise
Compact structure
Easy to move
DM series PM VFD movable fan is a new product specifically developed for improving the comfort of the working environment. It features self-designed variable frequency speed control, high efficiency, and energy-saving permanent magnet external rotor motor drive. It has the advantages of low noise, small volume, lightweight, compact structure, and beautiful appearance.
Application

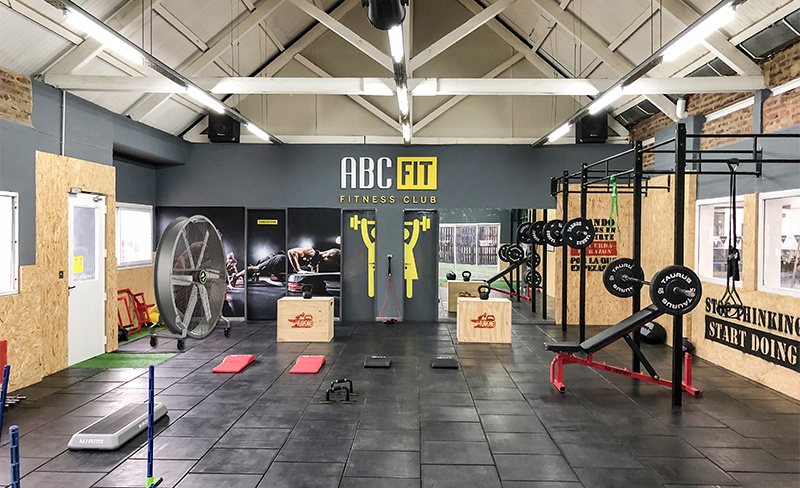

Fitness centers
Autdoor weddings

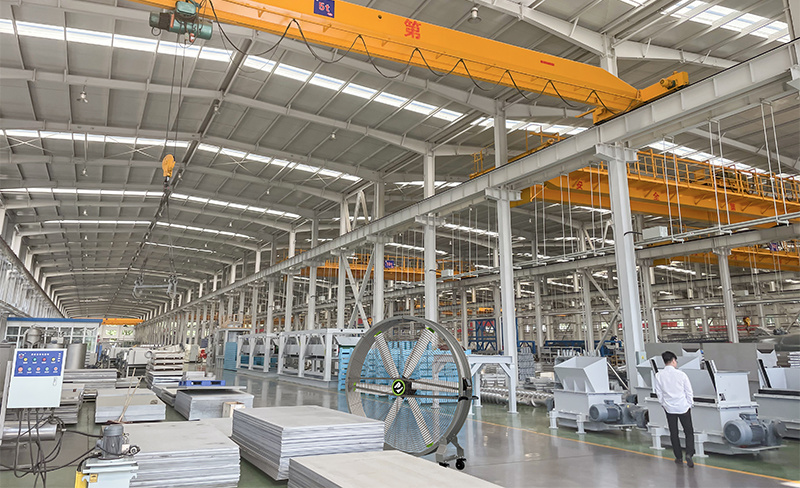

Industrial factory

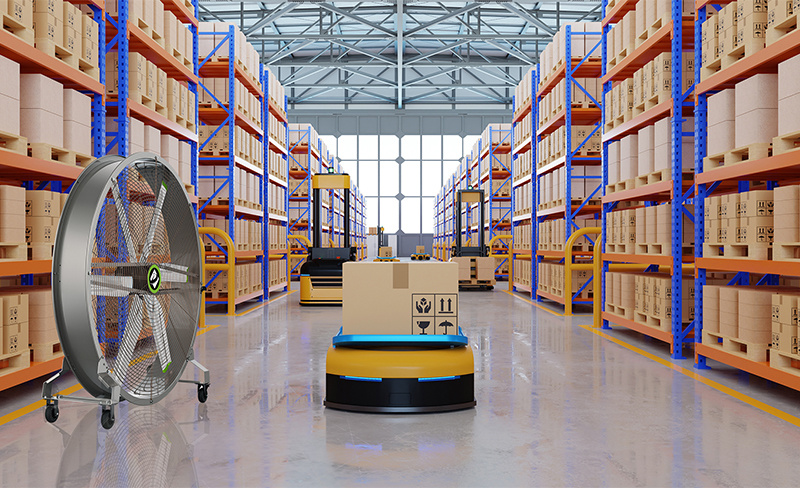

Logistics warehousing

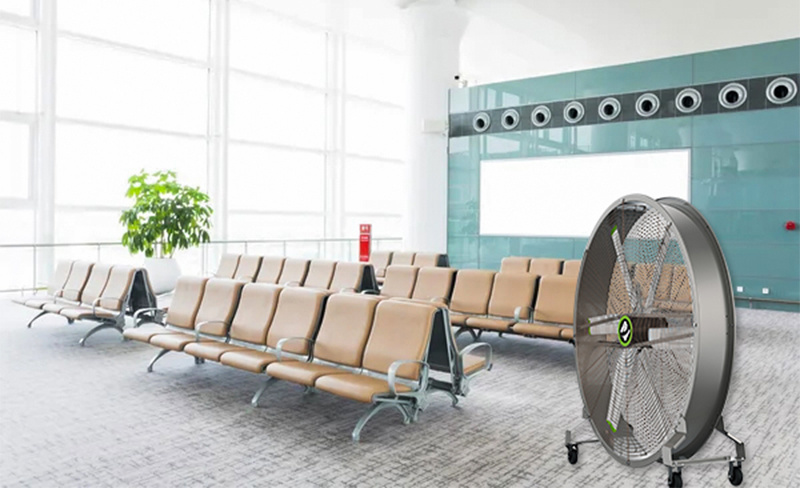

Waiting rooms

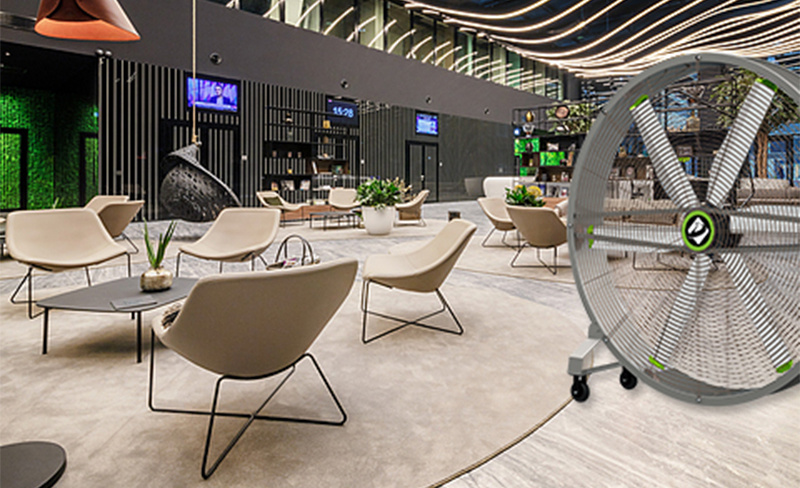

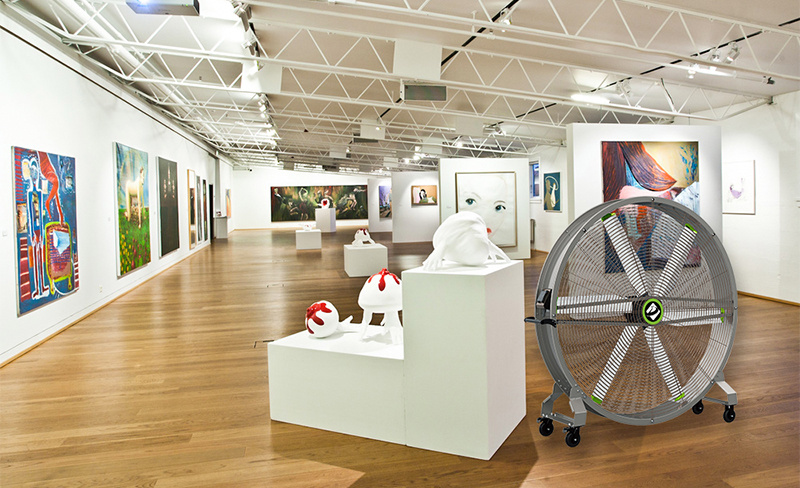

Exhibition halls

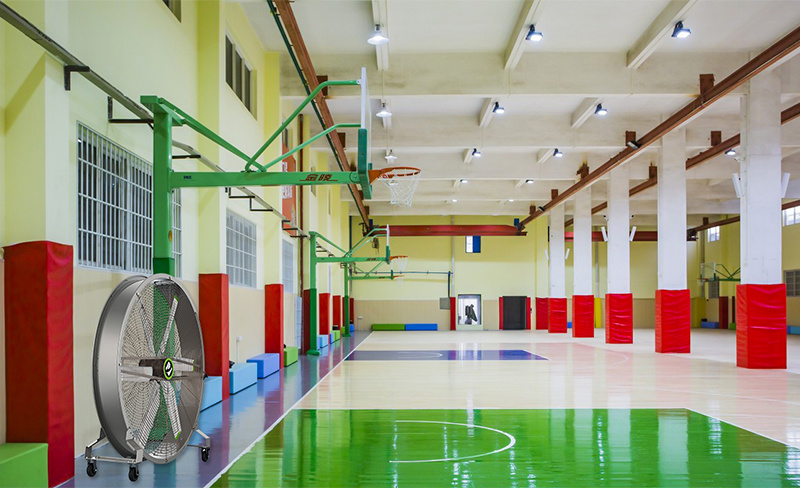

Gymnasiums
Large shopping malls
39dB
Ultra-quiet energy-saving comfort

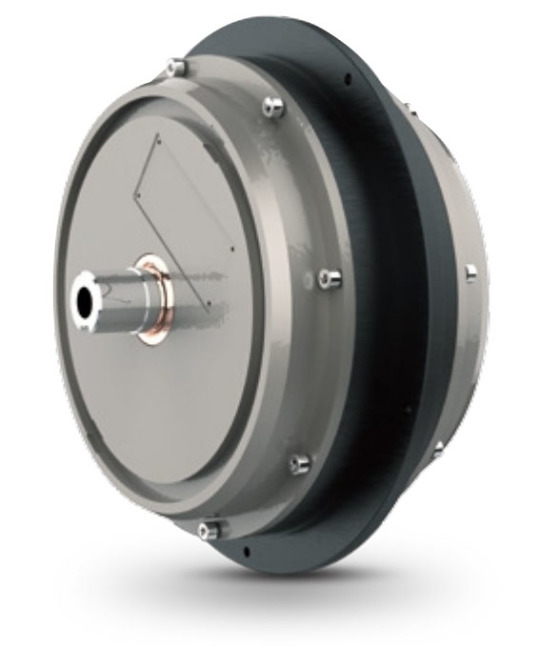

PERMANENT MAGNET SYNCHRONOUS MOTOR
Characteristics
1~2m
Blade diameter
1m~7m/s
Wind speed range
28m
Maximum blowing
distance
Natural three-dimensional air supply, enhance human comfort

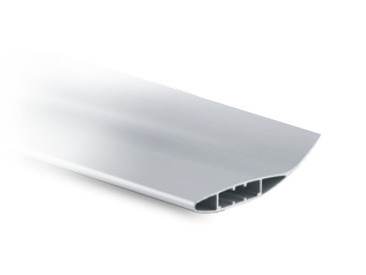

AIRFOIL INTERNAL REINFORCEMENT STRUCTURE

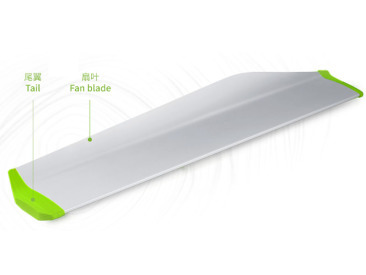

STREAMLINED FAN BLADE

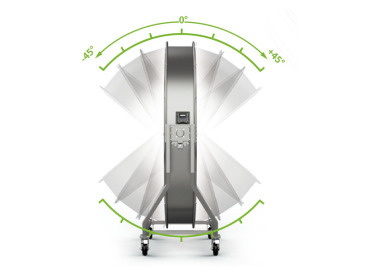

ADJUSTABLE AIR SUPPLY ANGLE

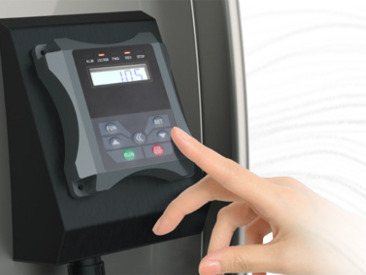

SMART CONTROL SYSTE
Performance parameters
| Model |
Diameter (m) |
Voltage (v) |
Frequency (Hz) |
Power (kw) |
Rotating Speed (rpm) |
| DM-79 | 2 | 220/380 | 50/60 | 1 | ≤300 |
| DM-59 | 1.5 | 220/380 | 50/60 | 0.75 | ≤420 |
| DM-39 | 1 | 220/380 | 50/60 | 0.55 | ≤600 |
| Model |
Air speed (m/s) |
Airflow (㎡/h) |
Weight (kg) |
Noise (db) |
Coverage area (㎡) |
| DM-79 | 1-5.5 | 80000 | 122 | 39 | 260 |
| DM-59 | 1-6.5 | 55000 | 93 | 39 | 150 |
| DM-39 | 1-7 | 30000 | 45 | 39 | 80 |

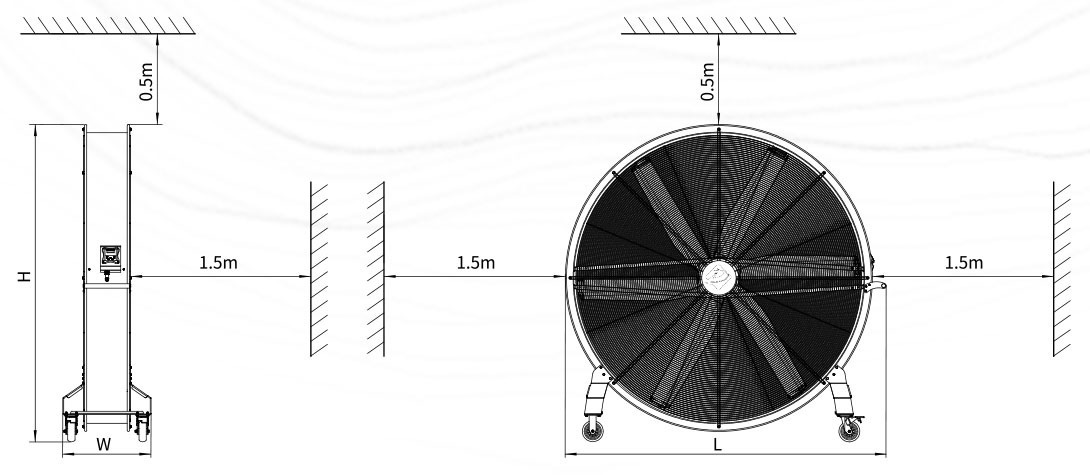

Placement Environment
INSTALLATION DATA
| Model |
L (cm) |
W (cm) |
H (cm) |
| DM-79 | 222 | 73 | 219 |
| DM-59 | 172 | 60 | 169 |
| DM-39 122 | 50 | 119 | |
